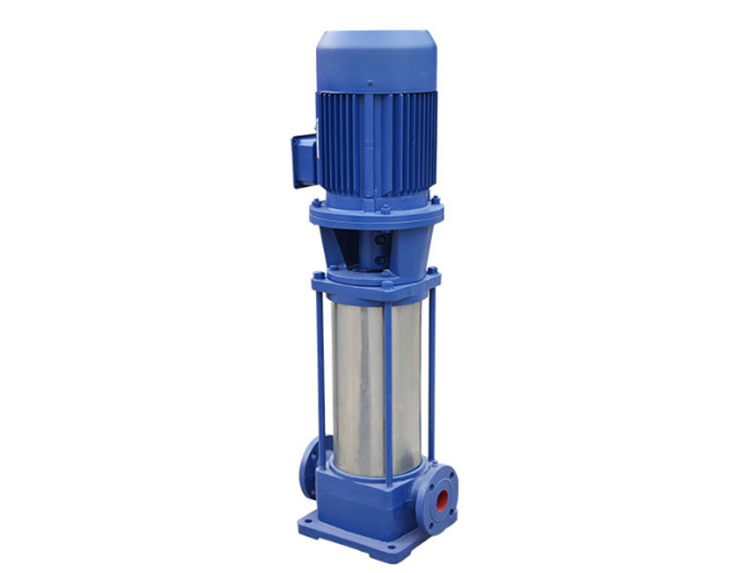

Booster Pump Vertical multi-stage

Vertical multi-stage pumps use multiple impellers mounted on a single shaft to produce higher pressures than single impeller centrifugal pumps. These highly efficient pumps require lower Net Positive Suction Head Available than other pump types, and are ideally suited for applications requiring high pressures.

Category:
Description
Reviews (0)
GDL series vertical multistage centrifugal pump with high pressure booster pump

GDL vertical multistage inline pump is the latest type, which is characterized by energy saving, space effective, easy installation, stable performance and so on. The casing is made of 1Cr18Ni9Ti top-grade stainless steel while the shaft gland adopts the abrasion-resistance mechanical seal with zero leakage and a long service life.

GDL vertical multistage inline pump solves the axial force with the hydraulic balance so that the pump has stable running with low noise. Its installation conditions are more favorable than those of DL pump because it can be easily installed in the middle of a segment of horizontal pipeline.

GDL vertical multistage inline pump can fully meet the need for the water supply and drainage of high-rise buildings, deep wells and mines and the like as well as for the fire fighting facilities. Therefore, it is the optimal type to transport cold and hot water, general media or other liquids with similar physical and chemical properties as water in all major industries.INQUIRE NOW

GDL series vertical multistage centrifugal pump with high pressure booster pump

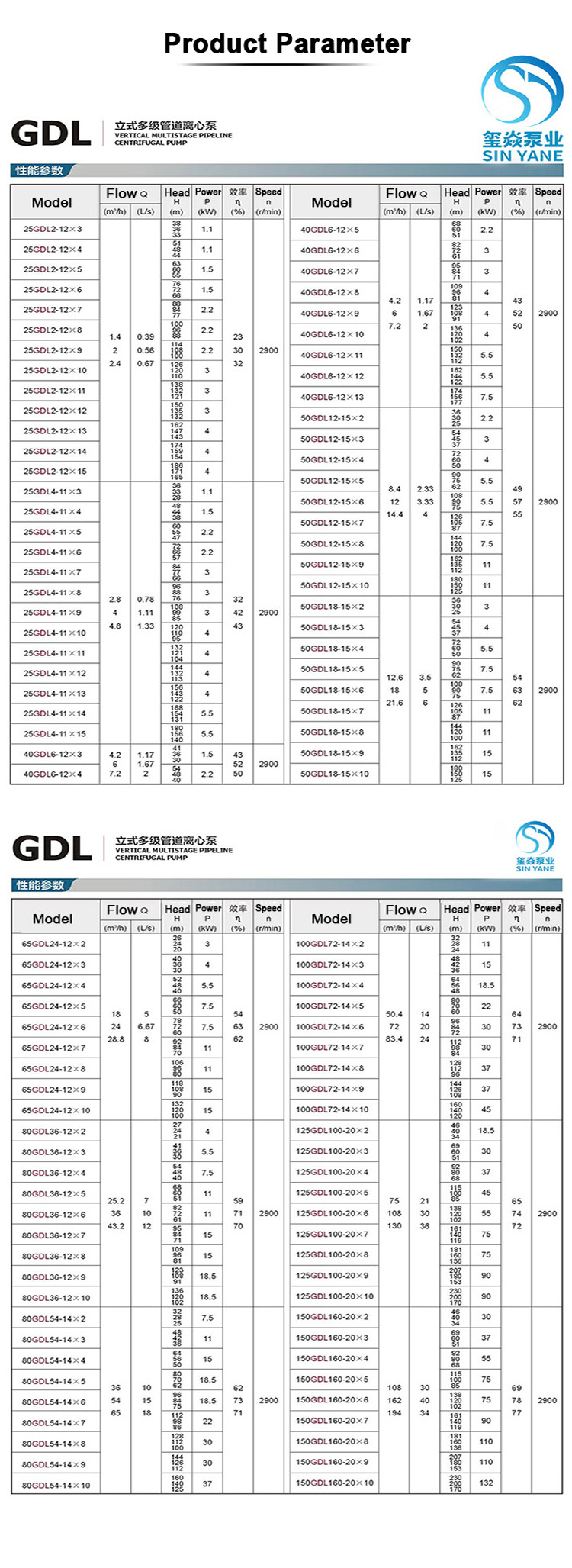

Technical Parameter



Item GDL vertical multistage inline centrifugal water pump
Suction Single
Model GDL series
Material Stainless steel
Color Blue and adjustable
Mode Vertical
Impeller Open impeller
Seal Soft packing seal or mechanical seal
Speed 2900r/min
Theory Centrifugal pump
Structure Multistage pump
Usage irrigation, transfer water
Power Electric
Standard or Non Standard
Shaft Stainless steel
Outlet diameter 25-100mm
Capacity 1.4-192m³/h
Head 33-230m
Power 1.1-132kw
Warranty 1year
Certificate ISO9001:2008
OEM Acceptable GET THE LATEST PRICE
Feature Cheap, mature technology, widely used

GDL series vertical multistage centrifugal pump with high pressure booster pumpGDL series vertical multistage centrifugal pump with high pressure booster pumpGDL series vertical multistage centrifugal pump with high pressure booster pumpGDL series vertical multistage centrifugal pump with high pressure booster pumpGDL series vertical multistage centrifugal pump with high pressure booster pump
